- ATMOSENSE -

ATMOSENSE

ATMOSENSE

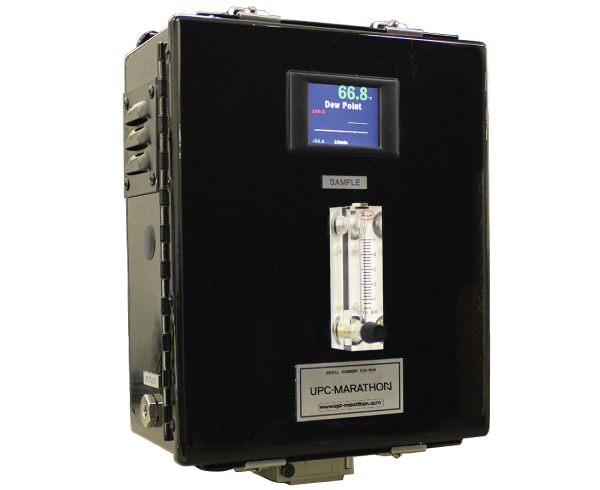

SINGLE GAS ATMOSPHERE ANALYZER

The AtmoSense™ measures process gases in real time in a wide variety of atmosphere control applications. The AtmoSense™ is available with a range of sensors and options to provide accurate measurement of either dew point, relative humidity (%RH), methane (CH4), propane (C3H8), hydrogen (H2), carbon monoxide (CO) or carbon dioxide (CO2). AtmoSense™ gas analyzers can be used alone or in combination with other sensors to measure multiple process gases and they can be stand-alone or integrated into a new or existing control system.





Documents

FEATURES & BENEFITS

  • NEMA 4 enclosure
  • Analog outputs for control system integration
  • Internal sampling pump
  • Visual sampling flow indication

SYSTEM CHARACTERISTICS

Filtration: 0.5 Micron solid element
0.3 Micron coalescing filter
Optional Pump Capacity: 16.3 CFH @ 1 PSI (7.7 L/min @ 69 mbar)
Power Source:12 VDC internal battery
Power requirement for charging: 120 VAC,50-60 Hz

SENSOR TYPES:Low range: Max range: Resolution: RH range:
Dew Point-60°C 60°C 0.1°C 0-100%
Hydrogen0.0% vol 100.0% vol 0.10% 0-100%
CH4- LOW0.00% vol 5.00% vol 0.01% vol 5-95%
CH4 – FULL0.0% vol 100.0% vol 0.1% vol 5-95%
CO0.0% vol 100.0% vol 0.1% vol 5-95%
CO20.000% vol 2.000% vol 0.005% vol 5-95%
O20.0% vol 20.0% vol 0.01% vol 5-95%
O2 FULL0.0% vol 100.0% vol 0.1% vol 5-95%

DOWNLOADS

BROCHURE
MANUAL

User Guide

Manual AtmoSense

Still Have questions?

Can’t find what you’re looking for? Please feel free to get in touch with our experts.
