- ACCUCARB LTA -

ACCUCARB LTA

ACCUCARB LTA

FOR ANNEALING ATMOSPHERES AND TEMPERATURES

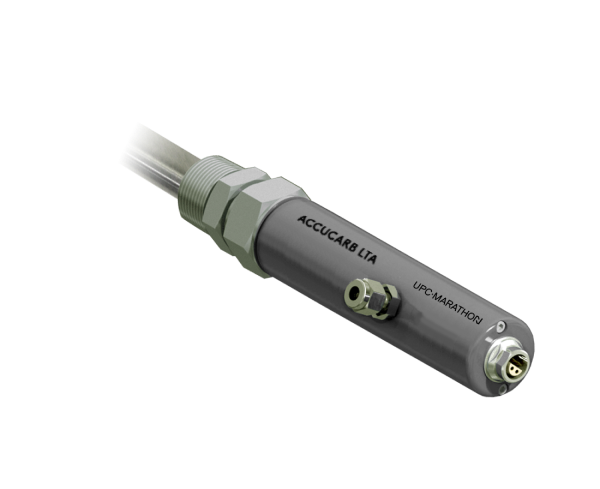

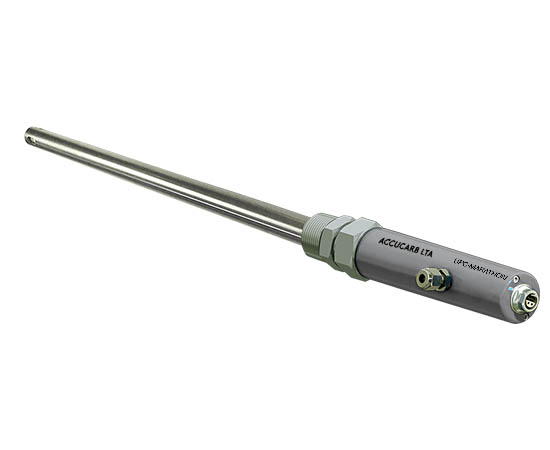

The AccuCarb® LTA Sensor is a specially designed oxygen probe for annealing atmospheres and temperatures. While the electrode designs of standard oxygen probes fall short due to the high impedance of the device at annealing temperatures, the unique electrode contact and solid electrolyte substrate of the AccuCarb® LTA resolve this problem. The sensor is also gas-tight for hydrogen applications to ensure safe operation.

Documents

FEATURES & BENEFITS

  • High accuracy and reliability
  • Special low temperature electrode assembly
  • Gas tight design for safety in hydrogen-based atmospheres
  • Vacuum-tight sealed head
  • UPC-Marathon TuffAlloy™ sheath material
  • Equipped with stainless steel connection fittings
  • Long sensor life
  • Thermal shock resistant, solid zirconia electrolyte
  • Special electrode design accommodates annealing temperatures

SYSTEM CHARACTERISTICS

Probe Part #AA8____5
Sheath material
TuffAlloy™AA
Inner electrode
High temperature - 8
Insertion length
17”/431.8 mm 17
20”/508 mm20
26”/660.4 mm26
32”/812.8 mm32
38”/965.2 mm38
T/C Type
NO thermocoupleX
Thermocouple Type BB
Thermocouple Type KK
Thermocouple Type RR
Thermocouple Type SS
Modification
3/4” Sch 40 Pipe5
