- VAPOR PHASE ALUMINIZING FURNACE -

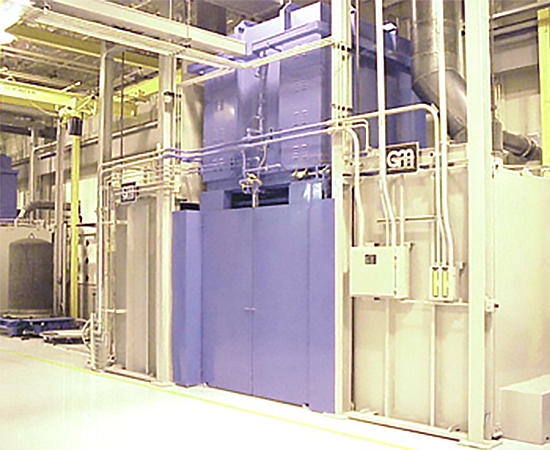

VAPOR PHASE ALUMINIZING FURNACE

The high-temperature Sealed Atmosphere Retort furnace is specifically designed for vapor phase aluminide (VPA) coating technology, making it the preferred choice for aerospace manufacturers seeking to enhance the performance and longevity of turbine blades and vanes. This process substantially increases the durability of superalloys, enhancing their resistance to oxidation, corrosion, and erosion at high-burn temperatures.

Engineered to maximize return on investment (ROI), improve reliability, and streamline maintenance for your VPA Coating process, the SAR furnace optimizes the high-temperature durability of treated components by applying an aluminide or thin oxide layer to superalloys.

SAR Furnace Model Load Dimensions (Diameter x Length) Retort Work Size
(Diameter x Length)
Gross Load Capacity
(LBS @ 2400°F / KG @ 1315°c)
Temperature
Range
SAR-3642-BL VPAE SAR-3642-BL VPAE 36″ x 42″
(914 mm x 1,054 mm)

40” D x 44”
(1,016 x 1,118 mm)

2,250 lbs (1,023 kg) 2,200°F
(1,204°C)

SAR-4242-BL SAR 42″ x 42″
(1,067 mm x 1,067 mm)

46” x 44”
(1,168 x 1,118 mm)

2,500 lb. (1,136 kg) 2200°F
(1204°C)

  • Industry-leading dependability with the most robust and energy-efficient design in the market
  • Furnace uptimes above 95%, a critical KPI in lean manufacturing
  • Available as a semi-automated bottom load design
  • With one coating chamber and two cooling chambers, productivity can be doubled compared to a regular batch set up with a single cooling chamber
  • Enclosed automated base for enhanced safety and convenience during operation
  • Cold retort loading protected from any heat
  • Temperature uniformity of ±10 °F (±5 °C) and range of up to 2,200 °F (1,204 °C)
  • Easy to maintain
