NXL CONTINUOUS SERIES

Electronic flow meter Furnaces & Technologies Nitriding / Nitrocarburizing Process & Flow Controls Turnkey Installations

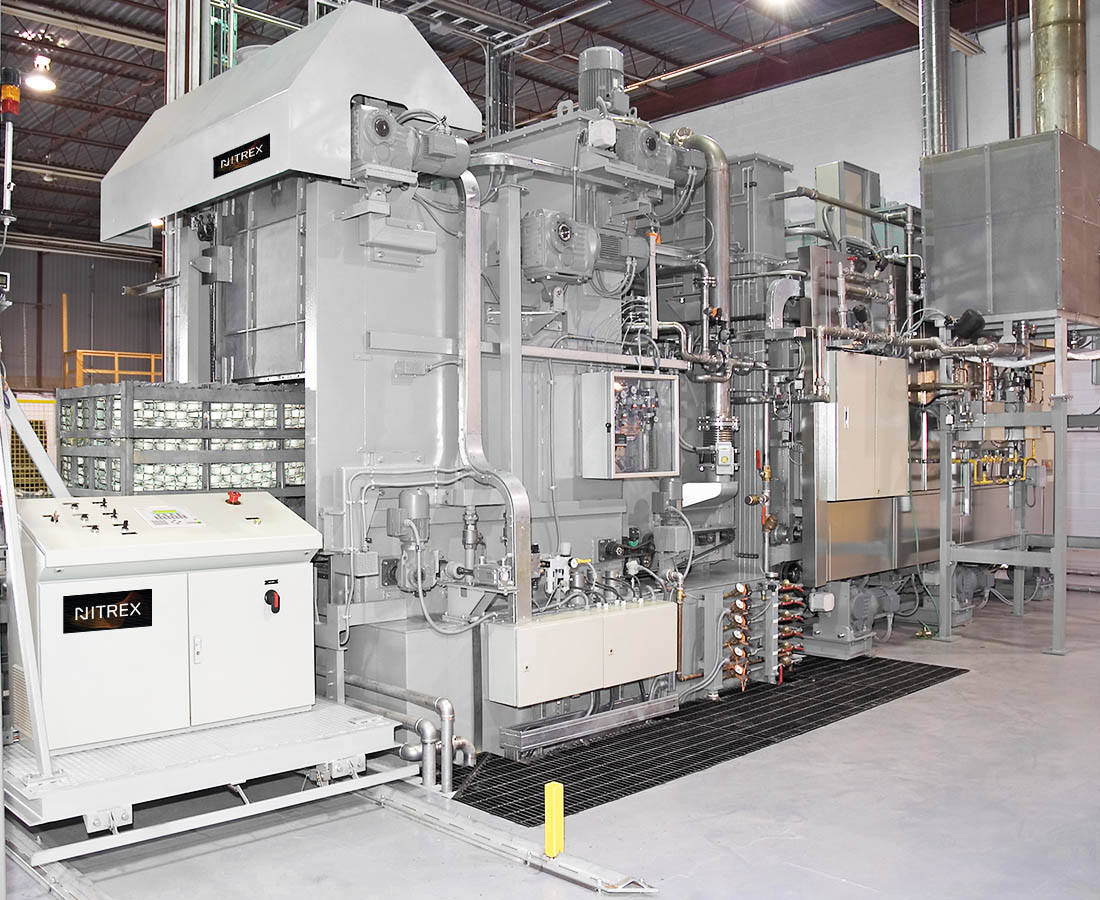

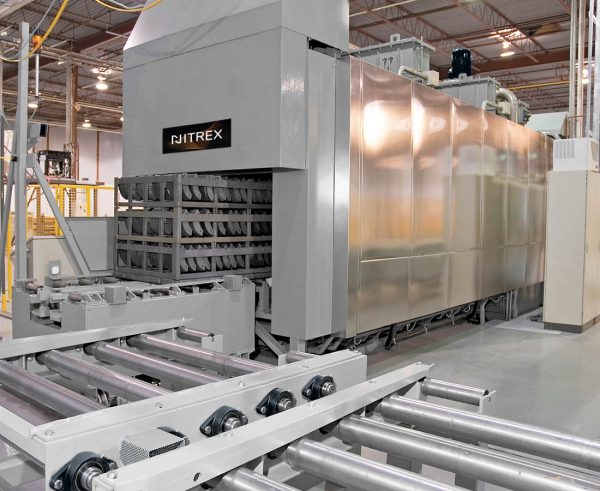

The NXL multi-chamber continuous gas nitriding/nitrocarburizing furnace is based on flexible and scalable process modules as a means of increasing the system’s capacity and adaptability to technological, application, and productivity demands. The NXL is offered in standard and custom sizes and configurations to suit unique needs with regard to parts dimensions, productivity and metallurgical requirements.

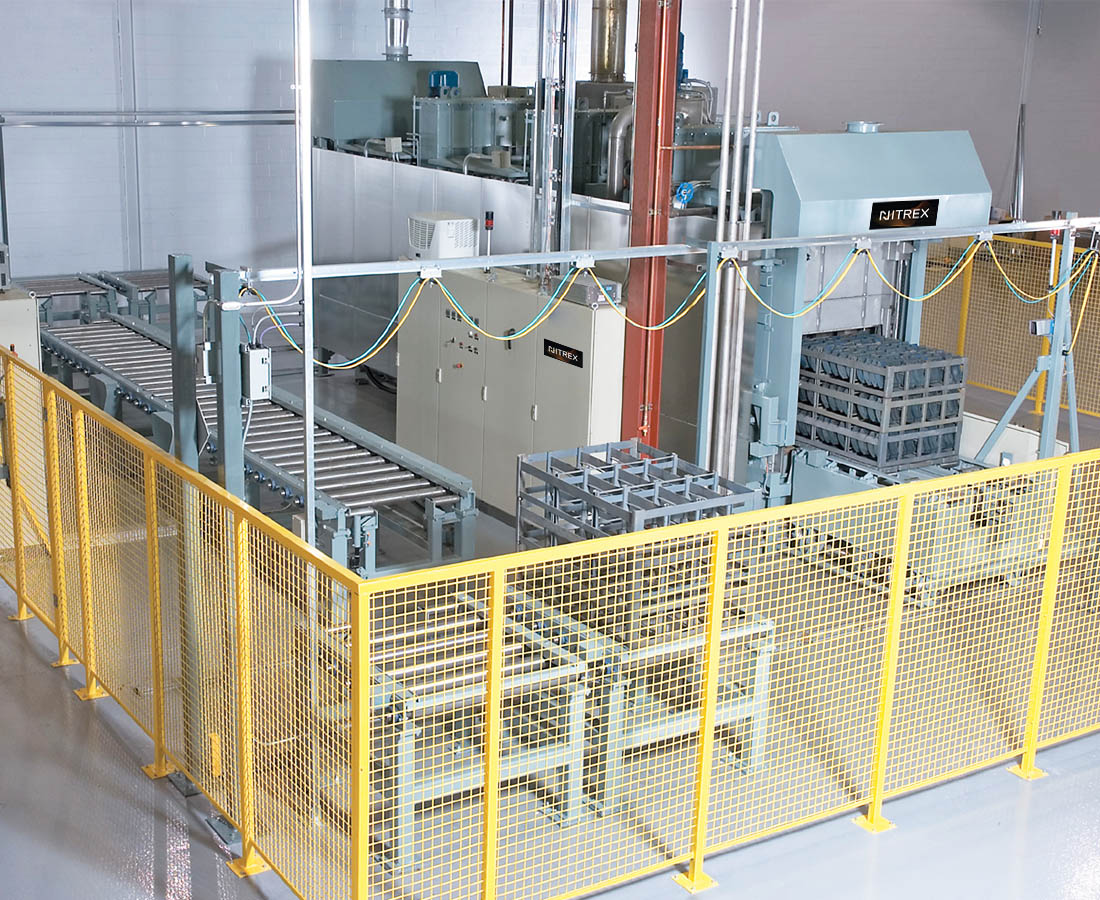

The flexible NXL system is easily adaptable to different levels of manufacturing automation from semi to full and lights-out operations.

To discuss your nitriding and nitrocarburizing furnace requirements, please fill out our “Request a Quote” form.

Documents

Access all documents

SYSTEM CHARACTERISTICS

Model	Working Space ( W x H x L )	Load Capacity
NXL-9912	35½”x 35½”x 47¼” 900 x 900 x 1200 mm	3300 lb. 1500 kg
NXL-9918	35½”x 35½”x 71 900 x 900 x 1800 mm	3970 lb. 1800 kg

FEATURES & BENEFITS

Inconel 600 (refractory steel) retort and racking for long service life and non-reactive interaction with nitriding atmosphere
Light fiber insulation reduces heat losses and thus energy consumption
Efficient internal recirculation ensures uniform process atmosphere
Heating system provides exceptional temperature uniformity throughout the workload
Highly economical solution for just-in-time high-volume production
Modular design for flexibility in multi-stage processes, customized configurations to suit any given application
Modular, flow-through design provides 30-40% energy savings compared to batch furnaces
TurboCooling module shortens cooling times and improves furnace utilization rates
Easy integration into production flow
Preconfigured and factory-tested
Pretested for metallurgical results
Fully automated operation guarantees repeatable and consistent results
True Nitriding/Nitrocarburizing Process Control – Compliant with AMS 2759/10 and AMS 2759/12 standards
Superior case properties per customer specifications
Various case configurations possible
Repetition of results
System for data archiving and reporting as well as remote diagnostics
SCADA connectivity
Clean, environmentally-friendly processes powered by Nitrex effluent neutralizers

PROCESS CAPABILITIES

NITRIDING/NITROCARBURIZING SIMPLIFIED

The Nitrex process control system is a product of extensive R&D in process automation and enables accurate process execution and consistent results. The entire nitriding/nitrocarburizing process is automatic, self-adjusting and operator-independent.

This expert system monitors and responds to changes in nitriding conditions by regulating the following parameters and operating functions:

Furnace heating functions such as process temperature, and overheat control with automatic emergency procedures
Atmosphere composition and cycle flow
Nitriding atmosphere ratios
Nitriding Potential KN (dissociation rate, for customer defined cycles)
Temperature for each process stage
Gas pressure inside the retort
Gas recirculation
Execution of the cooling stage and shutdown
Cooling water
Process safety features

ENJOY PEACE OF MIND

With our “set and forget” process, the user selects the desired recipe from a library of researched and tested recipes and initiates a process. From there, all stages of the nitriding cycle (e.g., purge, heat, process control, cool) are automatically sequenced in one uninterrupted cycle, without further operator intervention. This setup provides a high degree of accuracy in process execution, contributing to consistency in nitriding/nitrocarburizing results.
