FLOW MEASUREMENT FOR GASES AND LIQUIDS

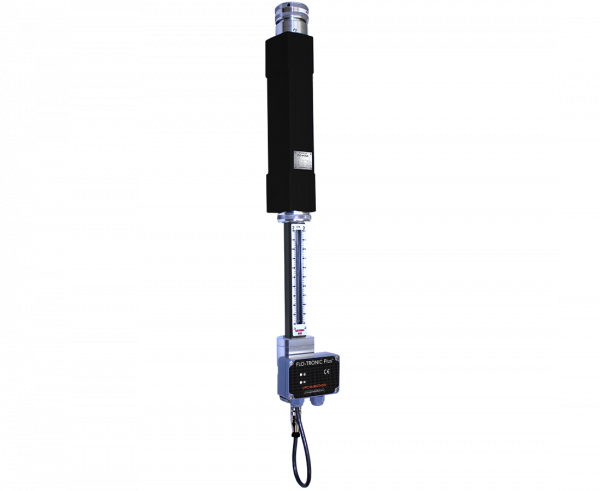

The Flo-Tronic Plus™ is based on a standard Flo-Meter™ with or without a manual flow control valve. It provides visual flow rate indication as required by NFPA and EN746 as well as an analog output in direct relation to the flow rate.

The Waukee new magnetic flow sensing technology is immune to problems associated with dirty oil. Ideal for customers who need to data log flow rates for compliance to NADCAP, AMS 2750D, or CQI 9.

Documents

FEATURES & BENEFITS

  • Meets NFPA and EN746 requirements for visual indication of flow
  • Isolated 4-20mA current loop output
  • Over current and reverse polarity protection
  • Calibrated in our ISO/IEC17025-2005 Calibration Lab and traceable to NIST (National Institute of Standards and Technology)
  • Multipoint calibration
  • Simple Installation
  • Modbus/TCP communications
  • 1 Programmable relay out
  • Easily connects to any PLC or controller with differential or single ended analog inputs
  • Retrofittable to existing Waukee Flo-Meters

SYSTEM CHARACTERISTICS

Power requirements:75mA24VDC (±10%)
Isolated Input:Field Selectable
0-20mA, 4-20mA,
0-10VDC, 2-10VDC
Scale:
Air (70°F; 14.7 PSIA / 21°C; 1 bar)
Model S: 4-100 CFH (0-3 m3/hr)
Model M: 10-1500 CFH (0-42 m3/hr)
Model L: 150-40,000 CFH (4-1133 m3/hr)
Liquid
Model SF:0.2-25 GPH (0.75-95 l/hr)
Turndown Ratio:
Model S: 10:1
Model M: 12.5:1
Model L: 15:1
Accuracy: † VDE/VDI 3513 sh.2, qG=50%
Model S/SF:5%
Model M: 4%
Model L: 3%
Max Operating Temperature
Ambient: 150°F (65°C)
Media:200°F (93°C)
Max Pressure:100 PSIG (7 bar)
Operating Pressure:≤ 90 PSIG (6 bar)
Pressure Drop:≤ 2” wcg (5 mbar)
Alarm Relay:SPST 0.5A@30VDC

APPLICATIONS

  • Annealing
  • Carburizing
  • Gas Blending
  • Neutral Hardening
  • Nitriding
  • Sintering



COMPATIBILITY

  • All gas types and mixtures
  • Liquids including water, alcohol, and methanol



* If you are unsure of the gas or liquid compatibility of your application, please contact your Waukee representative.
