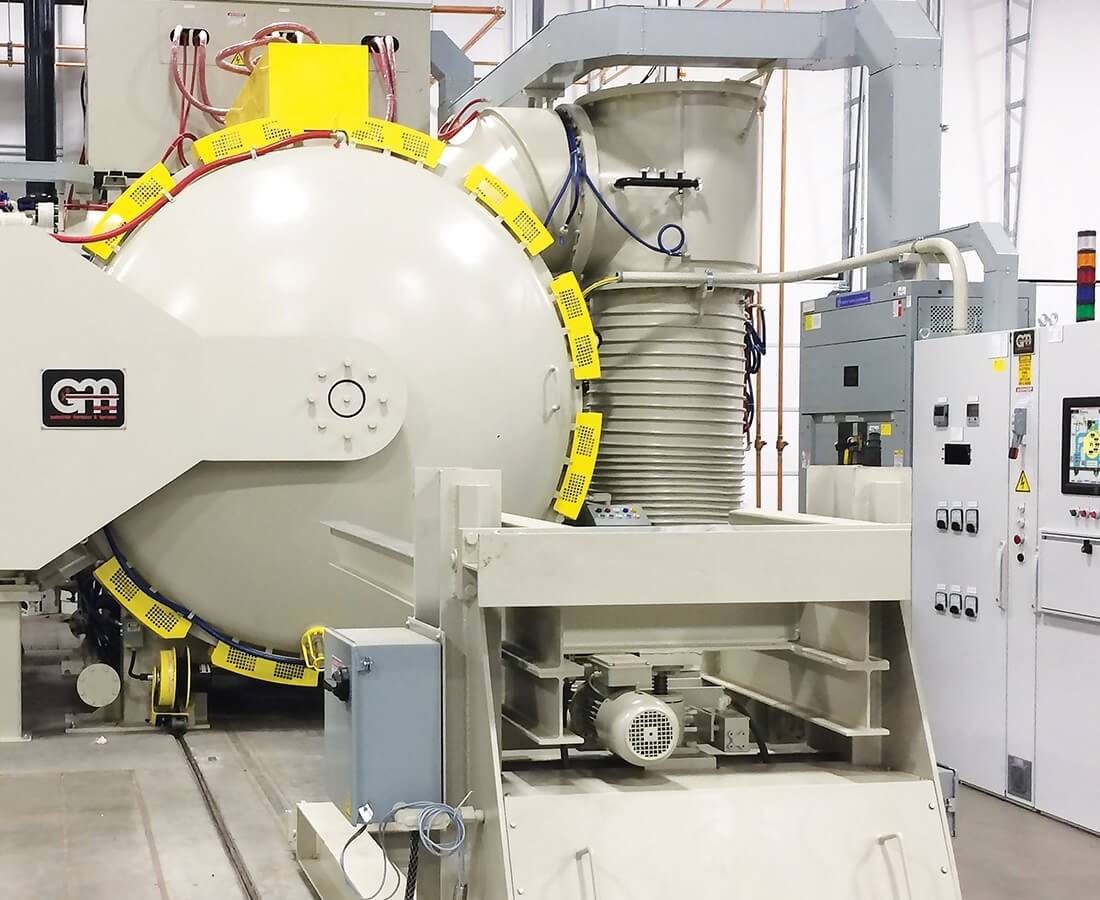

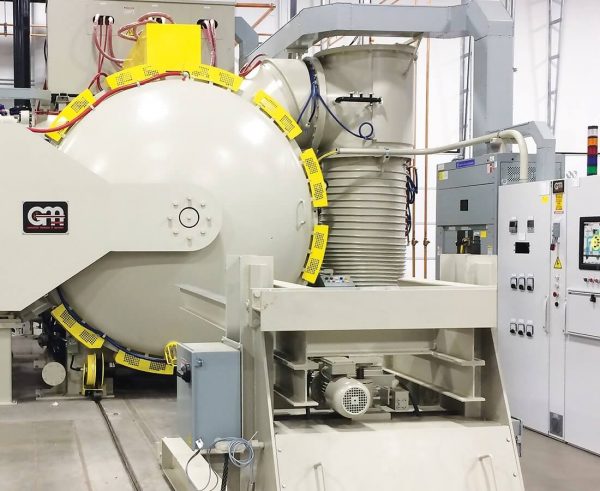

The Quantum Quench™ Vacuum Furnace offers controlled multi-directional delivery of cooling gas in selected quadrants without having moving parts inside the vacuum vessel. This patented design delivers controlled cooling in selected areas and eliminates maintenance commonly caused by moving parts within the main vacuum vessel which are constantly exposed to excessive heat.
The circular hot zone and cooling arrangements are divided into four quadrants: the bottom quadrant below the hearth area, the top quadrant, and the right and left quadrants. Cooling gas can enter from any one quadrant or a combination of quadrants. An alternate cooling gas can flow from the top and bottom quadrants to control distortion and provide unparalleled metallurgical and physical results.
| Furnace Model | Maximum Load Dimensions (Width x Height x Depth) | Standard Capacity | Maximum Capacity | Temperature Range | Working Pressure |
|---|---|---|---|---|---|
| HVF-101 | 18" x 24" x 18" (455 mm x 610 mm x 455 mm) | 750 lb. (340 kg) | 1,500 lb. (630 kg) | 1,000 °F - 2,500 °F (540 °C - 1,371 °C) | 10-20 bar |
| HVF-201 | 24" x 24" x 36" (610 mm x 610 mm x 915 mm) | 1,200 lb. (544 kg) | 2,400 lb. (1,088 kg) | 1,000 °F - 2,500 °F (540 °C - 1,371 °C) | 10-20 bar |
| HVF-301 | 36" x 30" x 48" (915 mm x 762 mm x 1,219 mm) | 2,000 lb. (909 kg) | 5,000 lb. (2,273 kg) | 1,000 °F - 2,500 °F (540 °C - 1,371 °C) | 10-20 bar |
| HVF-401 | 36" x 36" x 48" (914 mm x 914 mm x 1,219 mm) | 2,500 lb. (1,136 kg) | 5,500 lb. (2,500 kg) | 1,000 °F - 2,500 °F (540 °C - 1,371 °C) | 10-20 bar |
| HVF-701 | 48" x 48" x 48" (1,219 mm x 1,219 mm x 1,219 mm) | 3,500 lb. (1,590 kg) | 2,400 lb. (1,088 kg) | 1,000 °F - 2,500 °F (540 °C - 1,371 °C) | 10-20 bar |
| HVF-701XXB | 48" x 48" x 72" (1,219 mm x 1,219 mm x 1,829 mm) | 4,000 lb. (1,814 kg) | 8,000 lb. (3,629 kg) | 1,000 °F - 2,500 °F (540 °C - 1,371 °C) | 10-20 bar |
