- ARGON/HYDROGEN FURNACE -

ARGON/HYDROGEN FURNACE

This vertical batch retort furnace line is a good option when requiring a coating application.

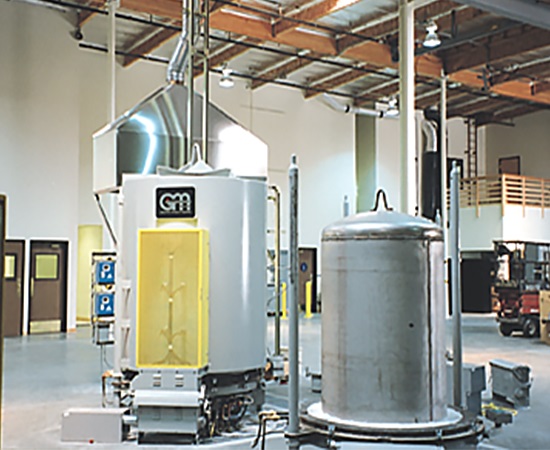

The SAR Batch Retort Bell Argon/Hydrogen Coating Furnace with electric heating and atmosphere gas.

Furnace Model Maximum Load Dimensions (Diameter x Length) Retort Work Size
(Diameter x Length)
Gross Load Capacity
(LBS @ 2400°F / KG @ 1315°c)
Temperature
Range
SAR-3642-E 36″ x 42″
(914 mm x 1,054 mm)

40” D x 44”
(1,016 x 1,118 mm)

1,500 lb. (1,136kg) 2200°F
(1204°C)

SAR-3842-E 38″ x 42″
( 965 mm x 1,067 mm)

42” x 44”
(1,067 x 1,118 mm)
2,000 lb. (1,023 kg) 2200°F
(1204°C)

SAR-4242-E 42″ x 42″
(1,067 mm x 1,067 mm)

46” x 44”
(1,168 x 1,118 mm)
2,500 lb. (1,590 kg) 2200°F
(1204°C)

SAR-4545-E 45″ x 45″
(1,143 mm x 1,143 mm)

49” x 48”
(1,245 x 1,245 mm)
2,500 lb. (1,590 kg) 2200°F
(1204°C)

SAR-4472-E 44″ x 72″
(1,118 mm x 1,829 mm)

48” x 76”
(1,245x 1,930 mm)
2,500 lb. (1,590 kg) 2200°F
(1204°C)

SAR-6052-E 60″ x 52″
(1,524 mm x 1,321 mm)

64” x 56”
(1,626 x 1,422 mm)
3,500 lb. (1,818 kg) 2200°F
(1204°C)

* Note: The batch furnace is designed with bottom loading and fully enclosed heating and cooling chambers.

  • Industry-leading dependability with the most robust and energy-efficient design in the market
  • Available as a crane hook or with a bottom load design
  • Temperature uniformity of ±10 °F (±5 °C) and range of up to 2,200 °F (1,204 °C)
  • The latest technology and a large touch screen facilitate use by operators
  • Easy to maintain
