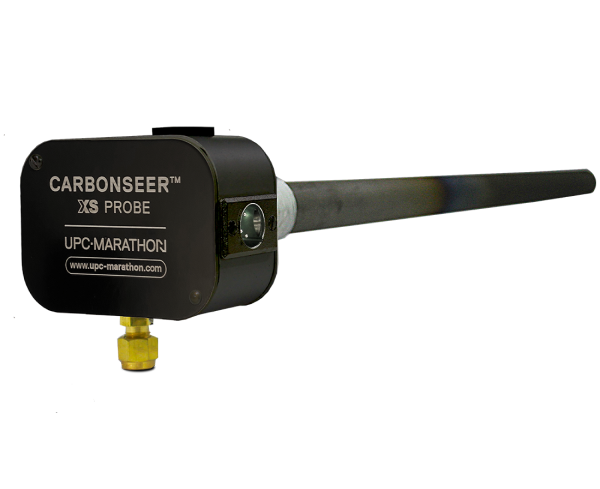

The newest addition to the expanded line-up of the popular CARBONSEER series, CARBONSEER XS™ is an affordable rugged sensor engineered specifically to operate at carbon levels above 1% and into saturation.

Documents

Access all documents

FEATURES & BENEFITS

12 Month Warranty
Heat Resistant Alloy Sheath
High Accuracy Electrode for a More Accurate Carbon Reading
Ventilated Tip Design for a More Accurate Carbon Reading
High Flow Burn-off for Improved Soot Removal
Fast Change feature < 2 minutes for probe removal or insertion

SPECIFICATIONS

Insertion Length – 20″ (508mm)-33.75” (857mm)
Sheath- 3/4″ Alloy pipe (Approx. 0.84″ OD, 21.3mm OD)
Thermocouple – No Thermocouple, Type S, Type R, Type K
Sensor and Thermocouple Connection – XLR
Furnace Mounting – 1″ NPT
Maximum Operating Temperature – 1850°F (1010°C)

DOWNLOADS

Brochure

Brochure Carbonseer XS

User Guide

Guide Troubleshooting_Carbon_Probes

Guide Troubleshooting_Oxygen_Probes

Carbonseer XS Manual
