SGS™

SGS™

Eingassensor zum Nitrieren und Nitrocarburieren

Integriertes Probenahmesystem für die Wärmeleitfähigkeit

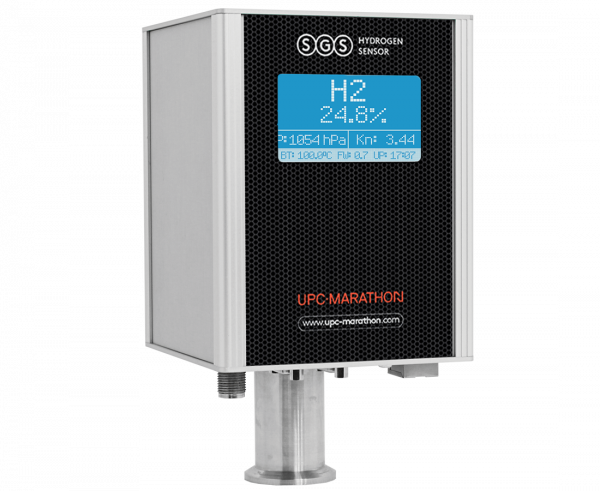

The SGS™ – Single-Gas Sensor measures hydrogen content with high accuracy in binary or quasi-binary process atmospheres. The SGS™ is low maintenance and boasts a long service life which eliminates the need for heated sample lines, filters, etc. The SGS™ can be stand-alone or integrated into a new or existing control system.

Ideal for measuring hydrogen content or dissociation level with high accuracy in nitriding and nitrocarburizing atmospheres, the SGS™ is also capable of calculating KN and KC for controlled nitriding and nitrocarburizing.

The integral sampling system eliminates the need for a separate external system. This one-piece SGS™ sensor is mounted directly on the process exhaust line or a sample port and uses the Venturi effect to sample the atmosphere.

Documents

FUNKTIONEN & VORTEILE

  • Die integrierte Probenahme erspart ein separates Probenahmesystem
  • Der Probenahmefluss wird durch den Venturi-Effekt erzeugt, indem je nach Installationsort des Sensors entweder die Atmosphäre oder die Abgase verwendet werden
  • Sensorblock und Elektronik im gleichen Gehäuse eingebettet
  • Integrierter Webserver mit Zugriff auf Diagnose, Konfiguration und Wartung
  • Optionale Berechnung des Nitrier- und Kohlenstoffpotentials beim Nitrieren und Nitrocarburieren
  • Analogsignale und Industrieprotokolle verfügbar
  • Eingänge für O2-Sensor und O2-Sensortemperatur verfügbar

SYSTEMEIGENSCHAFTEN

  • Genauigkeit: +/- 0,6 % vom Messwert plus +/- 0,4 % vom Skalenendwert
  • Linearität: < 0,5 % vom Skalenendwert
  • Wiederholbarkeit: < 0,5 % vom Skalenendwert
  • Nullpunktdrift: < 0,5 % vom Skalenendwert pro Monat
  • Reaktionszeit: 95 % in 60 s
  • Energiebedarf: 24 VDC, 1,5 Ampere max.
  • Eingänge/Ausgänge: 2 x Analogausgänge, speisend, isoliert; 4 – 20 mA (R
  • Arbeitsdruck: Umgebung +/- 35 mbar (0,5 PSI)
  • Kann in Geräten mit Vakuumspülung eingesetzt werden (keine Messung im Vakuum)
  • Anschluss: KF25-Flansch
