PROTHERM-Q

NEXT GENERATION UNIVERSAL PROCESS CONTROLLERS FOR HEAT TREATMENT

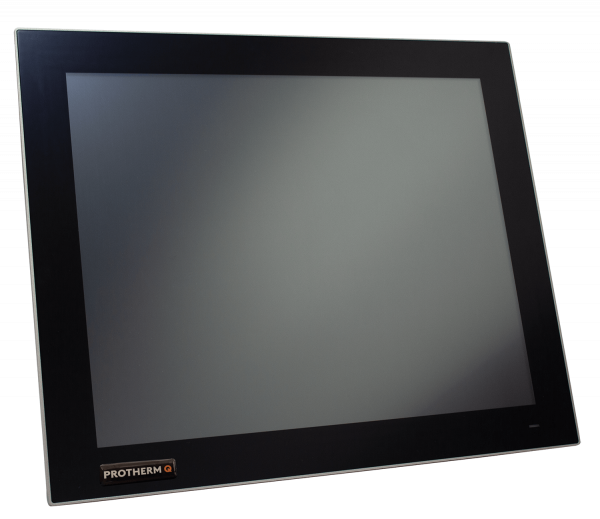

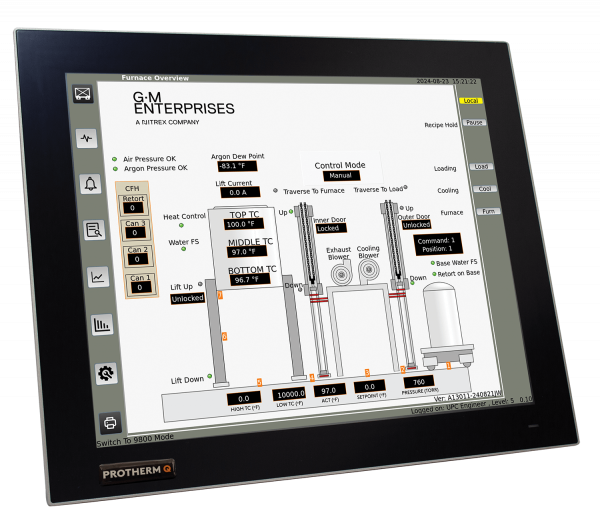

PROTHERM-Q is the next-generation controller series in the Protherm family, designed to monitor, control, record, and archive heat treatment processes across single or multiple furnace chambers. Configurable for various batch and continuous furnaces, it supports both new and refurbished installations. Featuring advanced process control, customizable graphics, and a full-color display, PROTHERM-Q models are available with a touchscreen interface. With options for modeling, target control, and detailed PID tuning, these features ensure precision and reliability in treatments, whether implemented as a standalone solution or integrated into an existing system as part of a retrofit.

Documents

FEATURES & BENEFITS

  • Full color display
  • Available in 12”, 15”, 17”, 19”, and headless versions
  • Alarm handling and logging
  • Multi-screen digital chart recorder
  • User-based password control
  • Real-time monitoring of loads at all stages of the process and all chambers of the furnace
  • Modbus TCP Client and Server
  • Compatible with older-generation PROTHERM controllers, minimizing retrofit downtime and accelerating operator training
  • Seamless integration with QMULUS and legacy Protherm 9800 SCADA systems

SYSTEM CHARACTERISTICS

MODELSQ2Q5Q7Q9
Colour display12"15"17"19"
Touch screenXXXX
USB port2222
Ethernet port2222
Modbus TCPXXXX

OPERATING CHARACTERISTICS

  • Full Colour touchscreen enables users to select input fields and enter data
  • Function keys provide quick access to the most important functions
  • User access to different functions is password protected
  • A PC keyboard or mouse can be connected through a USB port



AUTOMATIC BATCH PRODUCTION LOGS

  • Automatically generated PDF and CSV files after the completion of each batch
  • Production logs include:
      • Work order number/shop traveler, etc.
      • Recipe number and name
      • Start time
      • End time
      • Duration
      • Furnace name
      • Process values
      • Recipe details (e.g., setpoints, soak times) as ran
      • Recipe stage durations as ran
      • Alarms



INTEGRATED WEB SERVER

  • Production logs can be downloaded in PDF and ASCII-CSV formats and are stored for 30 days (configurable to 90 days). Logs can be further processed using PC software (e.g., Adobe Acrobat, Microsoft® Excel, etc.).
  • Screenshots can be downloaded
  • Basic remote monitoring includes active alarms, running recipe, chart recorder snapshot, and process variable status



CONFIGURATION

  • Special password-protected section for configuring background parameters such as:
  • Local usernames and passwords
  • PID setup and tuning with manual and auto tune available, including real time graph of PID response
  • Potential calculation calibration by curve, shim stock analysis entry, etc.
  • System backup and restore
  • Exporting of production logs and system logs
  • Import and export of recipes from other controllers
  • Troubleshooting tools

DOWNLOADS

OPTIONAL FEATURES

  • Process modelling for nitriding and carburizing applications
  • Real-time online diffusion calculation – enables both modeling and controlling the process using required target values
  • Modelling functions:
    • Mathematical model calculates atmospheric parameters from furnace parameters, gas flows, and sensor values
    • Real-time carbon and/or nitrogen diffusion calculations
    • Hardness profile calculation based on alloy composition, carbon or nitrogen content in the material, and quenching parameters
  • Special process diagrams:
    • Diagrams that display the modelled metallurgical state of a load during a process
    • Carbon content and hardness profiles
    • Nitrogen content and hardness profiles
    • Fe-C state diagram
    • Fe-N Lehrer diagram
    • Fe-N-C NICARM diagram
    • Fe-O state diagram
